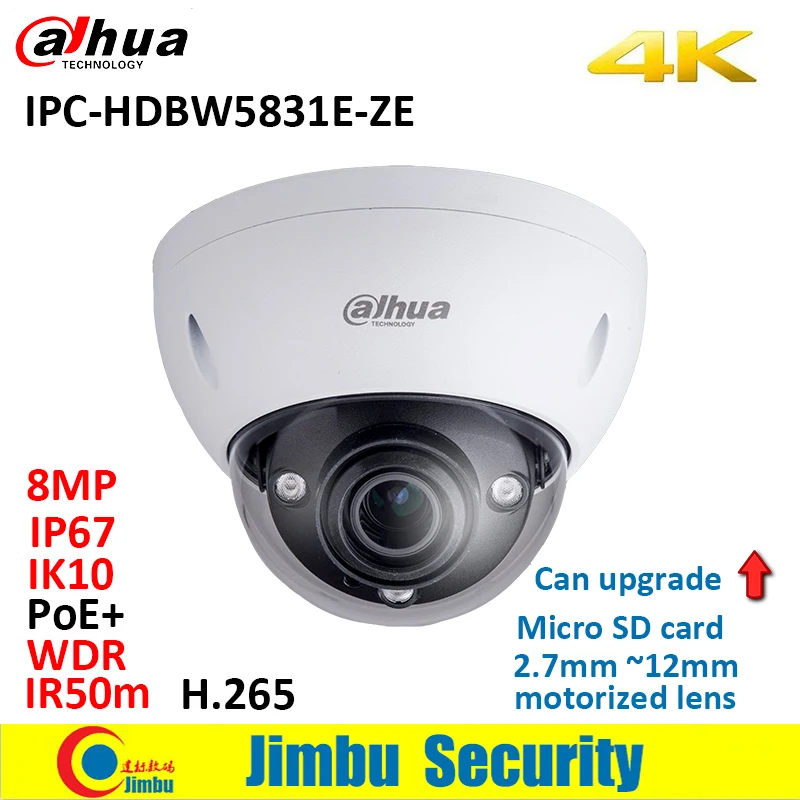

Dahua 8MP IP camera IPC-HDBW5831E-ZE WDR Network h.265 IR50m PoE+ 2.7mm ~12mm motorized lens IK10 Micro SD memory 128GB IVS

Brand Name Dahua

Style Dome Camera

Type IP Camera

Connectivity IP/Network Wired

Supported Operating Systems Windows 7

Supported Operating Systems Windows XP

Supported Operating Systems Windows 8

Supported Operating Systems Windows Vista

High Definition 8.0 Megapixels

Lens (mm) 2.7mm ~12mm motorized lens

Installation Ceiling

Power Supply(V) DC12V, AC24V, PoE+(802.3at)(Class 4)

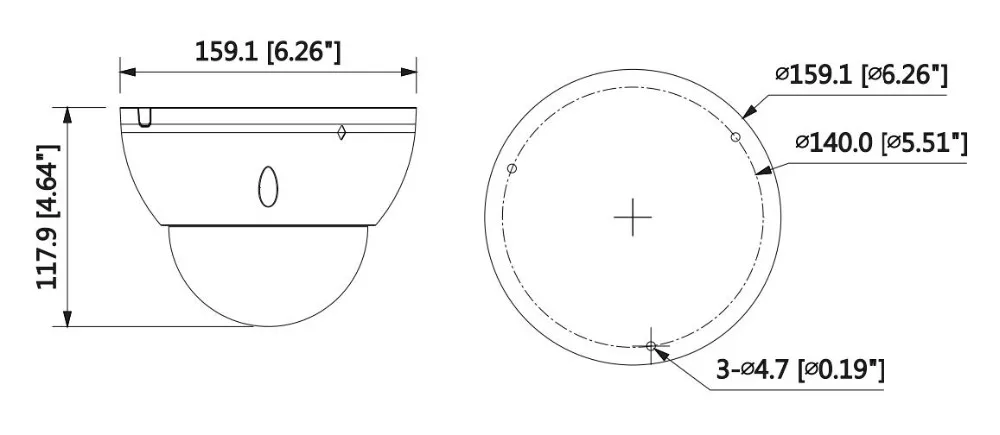

Dimensions (L x W x D)(mm) Dia159.1mm x 117.9mm

Model Number IPC-HDBW5831E-ZE

Network Interface RJ-45 10/100Mb Ethernet Slot

Wall Bracket Ceiling

Supported Mobile Systems Android

IR Distance(m) 50m

Special Features Vandal-proof

Viewing Angle 90°

Megapixels 8MP

Power Consumption(W) <15W

Storage 128G

Sensor Brand Sony

Alarm Action Local Alarm

Video Compression Format H.265

Video Compression Format H.264

is_customized No

Technology Infrared

Power Supply With POE

TF Card None

Color White

Audio Output None

Minimum Illumination(Lux) 0.05Lux/F1.4 (Color,1/3s,30IRE)

Sensor CMOS

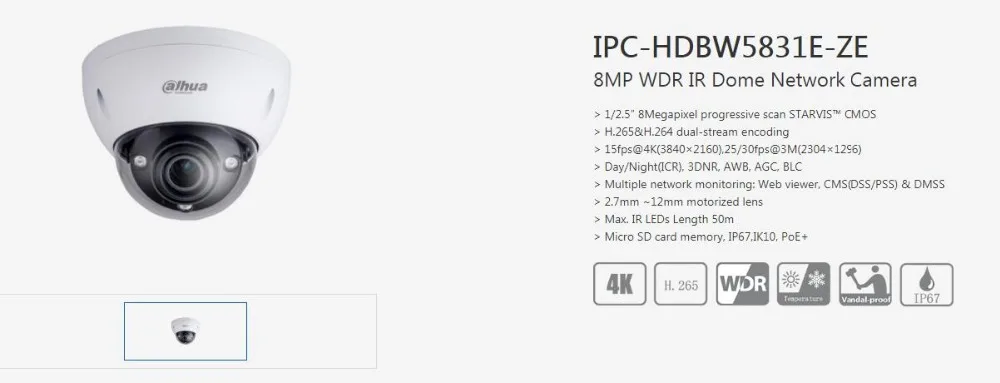

8MP WDR IR Dome Network Camera > 1/2.5” 8Megapixel progressive scan STARVIS™ CMOS > H.265&H.264 dual-stream encoding > 15fps@4K(3840×2160),25/30fps@3M(2304×1296) > Day/Night(ICR), 3DNR, AWB, AGC, BLC > Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS > 2.7mm ~12mm motorized lens > Max. IR LEDs Length 50m > Micro SD card memory, IP67,IK10, PoE+ Camera Image Sensor 1/2.5” 8Megapixel progressive scan CMOS Effective Pixels 3840(H)x2160(V) RAM/ROM 512MB/32MB Scanning System Progressive Electronic Shutter Speed Auto/Manual, 1/3~1/100000s Minimum Illumination 0.05Lux/F1.4 (Color,1/3s,30IRE) 0.2Lux/F1.4 (Color,1/30s,30IRE) 0Lux/F1.4(IR on) S/N Ratio More than 50dB IR Distance Distance up to 50m (164ft) IR On/Off Control Auto/ Manual IR LEDs 3 Lens Lens Type Motorized/ Auto Iris(DC) Mount Type Board-in Focal Length 2.7mm~12mm Max. Aperture F1.4 Angle of View H:110°~40° , V:58°~23° Optical Zoom 4x Focus Control Motorized Close Focus Distance 0.3m DORI Distance Lens Detect Observe Recognize Identify W 85m(280ft) 34m(112ft) 17m(56ft) 8.5m(28ft) T 228m(748ft) 91m(299ft 46m(151ft) 23m(75ft) Pan/Tilt/Rotation Pan/Tilt/Rotation Range Pan:0˚~355˚; Tilt:0˚~65˚; Rotation:0˚~355˚ Intelligence IVS Tripwire, Intrusion, Object Abandoned/Missing Advanced Intelligent Functions Face Detection Video Compression H.265+/H.265/H.264+/H.264 Streaming Capability 3 Streams Resolution 4K(3840×2160)/ 6M(3072×2048)/5M(3072x1728)/ 5M(2592×1944)/ 4M(2688×1520)/ 3M(2048x1536)/ 3M(2304×1296)/ 1080P(1920×1080)/1.3M(1280x960)/ 720P(1280×720)/ D1(704×576/704×480)/ VGA(640×480)/ CIF(352×288/352×240) Frame Rate Main Stream: 4K(1~15fps)/3M(1~25/30fps) Sub Stream: D1(1~25/30fps) Third Stream: 720P(1~25/30fps) Bit Rate Control CBR/VBR Bit Rate H.264: 24K ~ 10240Kbps H.265: 14K ~ 9984Kbps Day/Night Auto(ICR) / Color / B/W BLC Mode BLC / HLC / WDR White Balance Auto/Natural/Street Lamp/Outdoor/Manual Gain Control Auto/Manual Noise Reduction 3D DNR Motion Detetion Off / On (4 Zone, Rectangle) Region of Interest Off / On (4 Zone) Electronic ImageStabilization (EIS) N/A Smart IR Support Defog N/A Digital Zoom 16x Flip 0°/90°/180°/270° Mirror Off / On Privacy Masking Off / On (4 Area, Rectangle) Audio Compression G.711a/ G.711Mu/ AAC/ G.726 Network Ethernet RJ-45 (10/100Base-T) Protocol HTTP; HTTPs; TCP; ARP; RTSP; RTP; UDP; SMTP; FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; QoS; UPnP;NTP; Bonjour; 802.1x; Multicast; ICMP; IGMP; SNMP Interoperability ONVIF, PSIA, CGI Streaming Method Unicast / Multicast Max. User Access 10 Users /20 Users Edge Storage NAS Local PC for instant recording Mirco SD card 128GB Web Viewer IE, Chrome, Firefox, Safari Management Software Smart PSS, DSS, Easy4ip Smart Phone IOS, Android Certifications Certifications CE (EN 60950:2000) UL:UL60950-1 FCC: FCC Part 15 Subpart B Interface Video Interface 1 Port(For adjustment only) Audio Interface 1/1 channel In/Out RS485 N/A Alarm 1 channel In: 5mA 5VDC 1 channel Out: 300mA 12VDC Electrical Power Supply DC12V, AC24V, PoE+(802.3at)(Class 4) Power Consumption <15W Environmental Operating Conditions -30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH Strorage Conditions -30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH Ingress Protection IP67 Vandal Resistance IK10 Construction Casing Metal Dimensions Φ159.1mm×117.9mm (6.26”×4.64”) Net Weight 0.95kg (2.09lb) Gross Weight 1.20kg (2.65lb) below bracket work with this camera.please click the picture to order
